About Our Selection of Strainers

Our Paget brand of strainers is designed to successfully protect and increase the life of valves, pumps, traps, pressure regulators, controls, and meters!


Our design, rugged construction, and large screening area make our Paget Strainers exceptionally efficient. The strainer not only prevents passage of foreign matter in steam, water, air, oil, or gas lines but also retains it within the strainer body, where it is removed through a blow-off connection.


We can supply Y-type strainers and cast-iron, ductile, iron, lead-free, bronze, or stainless-steel materials. The least expensive and most widely used are the cast-iron strainers, which are used in non-critical applications involving low pressures and low temperatures. Ductile iron strainers are used when strength, temperatures, or mechanical shock are important considerations. The ductile iron has basically the same mechanical properties as cast steel but costs much less. Ductile iron is recommended for LP Gas services. Stainless Steel is used for food or chemical processing. Lead-free bronze is generally used for saltwater or brine applications.


Selection of Screening Elements


The efficiency of the strainer is dependent upon the proper selection of the size of the perforations or the number of the wire Mesh in the screening element. The industry's basic rule is to use the coarsest Mesh or perforations that will strain out the harmful forging particles. Anything smaller will plug up the element quicker, and anything larger will allow the Damaging particles to pass through and wreak havoc on the equipment it was designed to protect.


Stock wire mesh screen in stainless steel (standard), Monel, or brass is available in the following meshes: 20, 30, 40, 50, 60, 80, 100. Finer mesh screens are available upon request. Please note that we do not make recommendations as to what screens you need for your particular application.

View Our Products

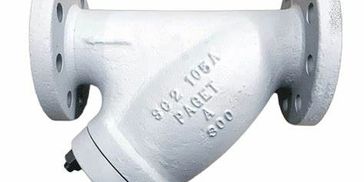

Style A

Style A

Standard: Flanged Ends and Bolted Cover Cast Iron, ANSI Rated 125 lbs. 125 psi Steam-200psi WOG 316 Stainless, ANSI Rated 150 psi Steam-250 psi WOG. Larger sizes available upon request.


Extra Heavy: Flanged Ends and Bolted Cover Cast Iron, ANSI Rated 250 lbs. 250 psi Steam-400 psi WOG Ductile Iron, ANSI Rated 300 lbs. 300 psi Steam-600 psi

Standard: Flanged Ends and Bolted Cover Cast Iron, ANSI Rated 125 lbs. 125 psi Steam-200psi WOG 316 Stainless, ANSI Rated 150 psi Steam-250 psi WOG. Larger sizes available upon request.


Extra Heavy: Flanged Ends and Bolted Cover Cast Iron, ANSI Rated 250 lbs. 250 psi Steam-400 psi WOG Ductile Iron, ANSI Rated 300 lbs. 300 psi Steam-600 psi WOG * Available only in 2’; 2 1/2’;3’; 4’, and 6”. Larger sizes available upon request.

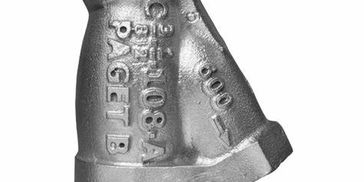

Style B

Style A

Screwed Ends and Screwed Blow-Off Standard type for general service. Cast iron body, w/Stainless Steel Screen 250 psi Steam-400 psi WOG. Also Available in: Lead-free bronze, w/Stainless Steel Screen 300 psi Steam-400 psi WOG

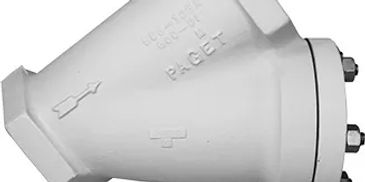

Style C

Screwed Ends and Bolted Cover Cast Iron, w/Stainless Steel Screen 250 psi Stream 400 psi WOG Lead-free bronze, w/Stainless Steel Screen Ductile Iron, w/Stainless Steel Screen 316 Stainless Steel Screen.

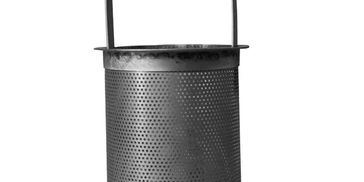

Style F Basket

Applications of Paget Basket Strainers include cooling water, recirculating process water, swimming pools, water systems, oil storage and handling facilities, chemical and food processing.

Explore Our Manufacturing Excellence Gallery

    Welcome to Paget Strainers

    We are a leading manufacturer of high-quality products. Our company has been in business for over 50 years and has a reputation for excellence in our industry. We pride ourselves on providing our customers with top-notch service and products that meet their needs and exceed their expectations. Our team of skilled professionals is dedicated to ensuring that every product we produce is of the highest quality.

    Learn More

    This is a content preview space you can use to get your audience interested in what you have to say, so they can’t wait to learn and read more. Pull out the most interesting detail that appears on the page and write it here.

    Find Out More

    Selection of Strainers

    Our PAGET brand Strainers are designed to successfully protect and increase the life of valves, pumps, traps, pressure regulators, controls and meters. Our design, rugged construction and large screening area, make our PAGET strainers exceptionally efficient. The Strainer not only prevents passage of foreign matter in steam, water, air, oil or gas lines but retains it within the strainer body, where it is removed through a blow-off connection.


    We can supply Y-type strainers in cast iron, ductile iron, lead free bronze or stainless steel materials. The least expensive and most widely used are the cast iron strainers and are used in non-critical applications involving low pressures and low temperatures. Ductile iron strainers are used when strength, temperatures or mechanical shock are important considerations. The Ductile iron has basically the same mechanical properties as cast steel cost much less. Ductile Iron is recommended for LP Gas Services. Stainless steel is used for food or chemical processing. Lead free bronze is generally used for saltwater or brine applications.


    Selections of Screening Elements

    The efficiency of a strainer is dependent upon the proper selection of the size of the perforations or the number of wire mesh in the screening element. The industry's basic rule is to use the coarsest mesh or perforations that will strain out the harmful foreign particles. Anything smaller will plug up the element quicker and anything larger will allow the damaging particles to pass thru and wreak havoc on the equipment it was design to protect.


    Screens can be furnished with perforations ranging from 164" to 1/2 diameters in stainless steel (standard), monel or brass.


    Stock wire mesh screens in stainless steel (standard), monel or brass are available in the following meshes: 20,30,40,50,60,80 and 100. Finer mesh screen are available upon request. Please note that we do not make recommendations as to what screens you need for your particular application.

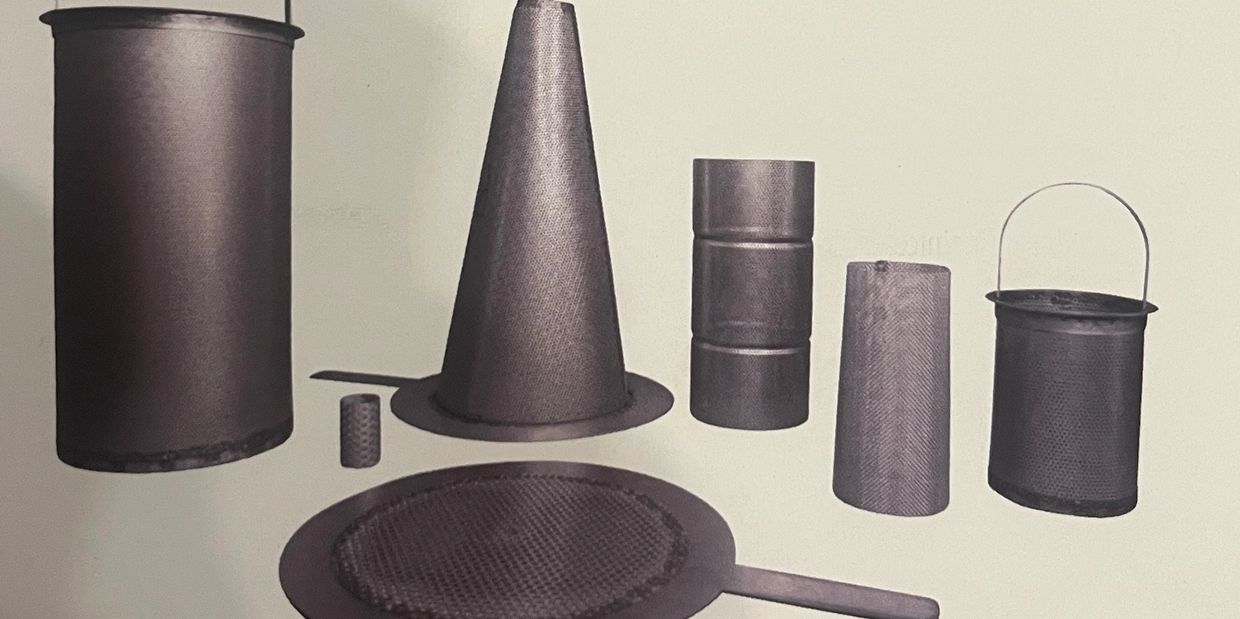

    Replacement Screen and Baskets

    Wide Selection and in-House Inventory

    Replacement Screen and Baskets

    We make replacement screens and baskets for our line of strainers, as well as for some other manufacturers' strainers when dimensions are available.

    Temporary Line Strainers

    Wide Selection and in-House Inventory

    Replacement Screen and Baskets

    We also make stainless steel temporary line strainers, which are installed between flanges at start-up time to collect the start-up debris and are later removed for the continuation of normal service.

    Wide Selection and in-House Inventory

    Wide Selection and in-House Inventory

    Wide Selection and in-House Inventory

    In addition to our large, in-house inventory of our PAGET brand of strainers, we also stock other strainers in order to offer our customers a solution to almost every application.


    Our large, in-house inventory of our PAGET strainers enables us to manufacture and ship to our customers "UPS-NEXT DAY" when specified by our customers.


    We also distribute Mueller strainers. Contact our office for more information on these products.
